Monitoring Performance Under Highly Variable Conditions

Case Study

INTRODUCTION

Etalim Inc., a small powerplant manufacturer recently moved one of their prototype units from a highly controlled test environment to a field test site. The field test site default operating conditions were substantially different than the in-house test cell and included fewer controls on system temperatures and pressure. As a result the customer could no longer rely on simply looking at one output metric to determine the condition of the unit. Machinery Analytics was hired to provide a more robust method of detecting changes in actual performance vs. changes in output due to changes in the environment.

Untitled design (42).png

CUSTOMER PROBLEMS

It’s essential to understand if the unit is degrading

393-90c8090df0a63e76991bc6aae7b46c87d8cd

Conditions in the field are highly unsteady, making it difficult to discern trends

393-90c8090df0a63e76991bc6aae7b46c87d8cd

Data is stored in multiple, files with different naming and formatting

393-90c8090df0a63e76991bc6aae7b46c87d8cd

Data set consists of 3.4M rows and cannot be visualized with existing tools

393-90c8090df0a63e76991bc6aae7b46c87d8cd

OUR SOLUTION

Fully Scalable Cloud Data Storage

Can collect system telemetry into a database for years and multiple machines

Browser Based Visualization

Allows viewing of million of lines of data from anywhere

State of the Art Machine Learning

Creates a data driven model of the system the model is used to detect real changes in performance vs. changes in operating conditions

HOW WE DID IT

STEP 1

Move the Data Set

Into a Cloud Database

Files with varying formats were parsed and prepared for database upload, ensuring each value conforms to an appropriate data type [eg float, int, string] as needed. All data was then moved into a secure database hosted on Google Cloud.

STEP 2

Implement Conventional Data Visualization Dashboard

Untitled design (2).gif

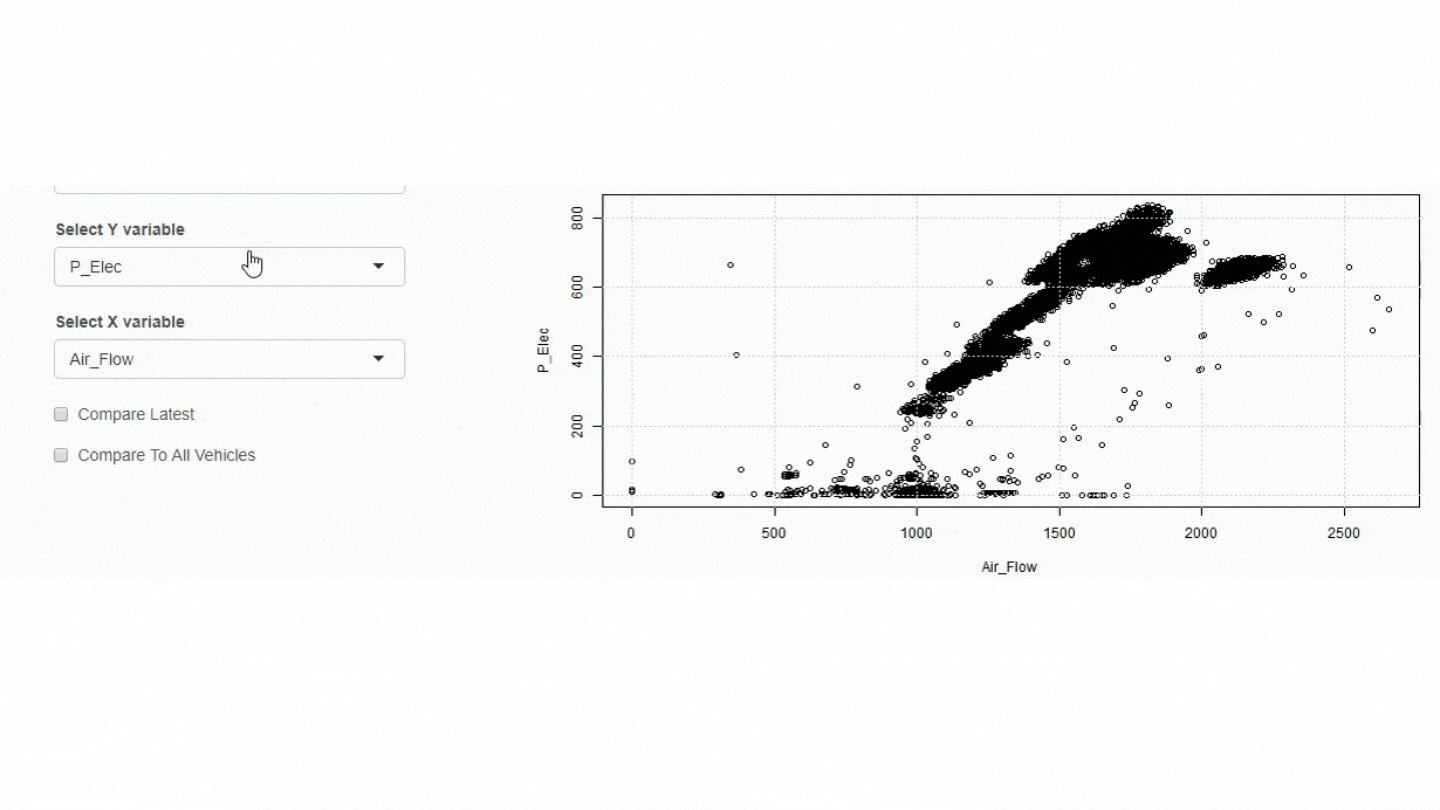

A browser-based data visualization dashboard was implemented. The dashboard allows plotting of any variable on either the X or Y axis. A demonstration of the dashboard is shown below:

Create a Data Driven Model of the System

The primary variable of interest is the power output of the system, as can be seen from the figures below there is a significant amount of variability in the operating condition, and this makes it impossible to conclusively comment on how performance is changing with time.

Untitled design (44).png

Files with varying formats were parsed and prepared for database upload, ensuring each value conforms to an appropriate data type [eg float, int, string] as needed. All data was then moved into a secure database hosted on Google Cloud.

The model fits data with a mean absolute error of 1.6% of rated power. Measured and predicted data is shown in normalized units below.

STEP 3

Untitled design (43).png

STEP 4

Data Monitoring

In the final step we continue to collect data from the system and watch for agreement with the previously created model, continued agreement between the model and data shows that machine performance is not changing.




RESULTS

Once moved to a cloud database, the stored size of the database was nearly 50% less than the stored size of the original files. We implemented a web based data viewer to clearly demonstrate the capabilities of a new piece of hardware. We then developed a data driven model of system performance with a mean prediction error of 1.6%.



When we started the customer had no reliable way of knowing if their machine was working to spec. Now the customer can quantify system health by one look at the comparison between model prediction and actual output.
